Product Details

FEATURES:

• Hot air impingement. The hot air jet technology and hot air circulation act on the food surface,

       which makes the food  heated more quickly and the taste is more crisp

• Front-access window, robust stainless steel handle

• The height of the windshield is adjustable to reduce heat  loss and reduce the limitation of the size of the food

• Stackable up to 3 units high

• With PID Microprocessor controller, baking temperature and time are always under perfect control

• All stainless steel structure, comply with food hygiene requirements

• Floor-type design with 5” heavy duty castors, all with brakes

• Toolless-open access panels

• Reversible conveyor direction

Quality comes from details

Hot Air Impingement Technology

The imported high-temperature-resistant special mixed-flow turbine blades combine the properties of

axial flow and circulation, so that the high-temperature airflow has DC impact force and uniformity of circulation,

and the  thermal efficiency is very high.

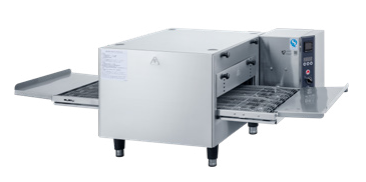

Name: NTE-1620-T  ELECTRIC CONVEYOR OVEN

CTL: 5” Touch Screen CTL

Single stack size: 1032(1400 with  extention sheet plates） × 826 × 467

Double stack size: 1032(1400 with  extention sheet plates） × 826 × 838

Packing Size W×D×H (mm): 1100×920×620

Long Cooking Chamber (mm): 518

Belt Width (mm): 436

Max Operation Temp: 300℃

Power: 6.7kW (per deck)

Bake Time Range:1‘25”~11  (minutes)

IP Rating: IPX3

Volts: 380-415V 3N ～220-240V 3N

Hz: 50Hz/60Hz

Net Weight (kg):85

Gross Weight (kg):107
